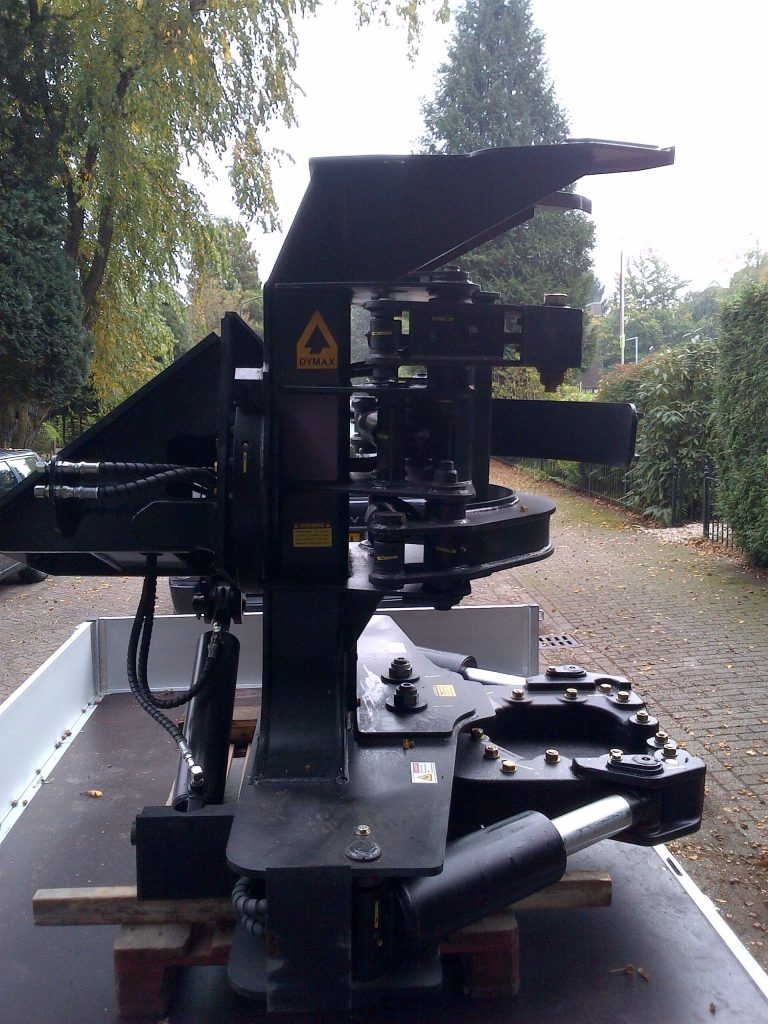

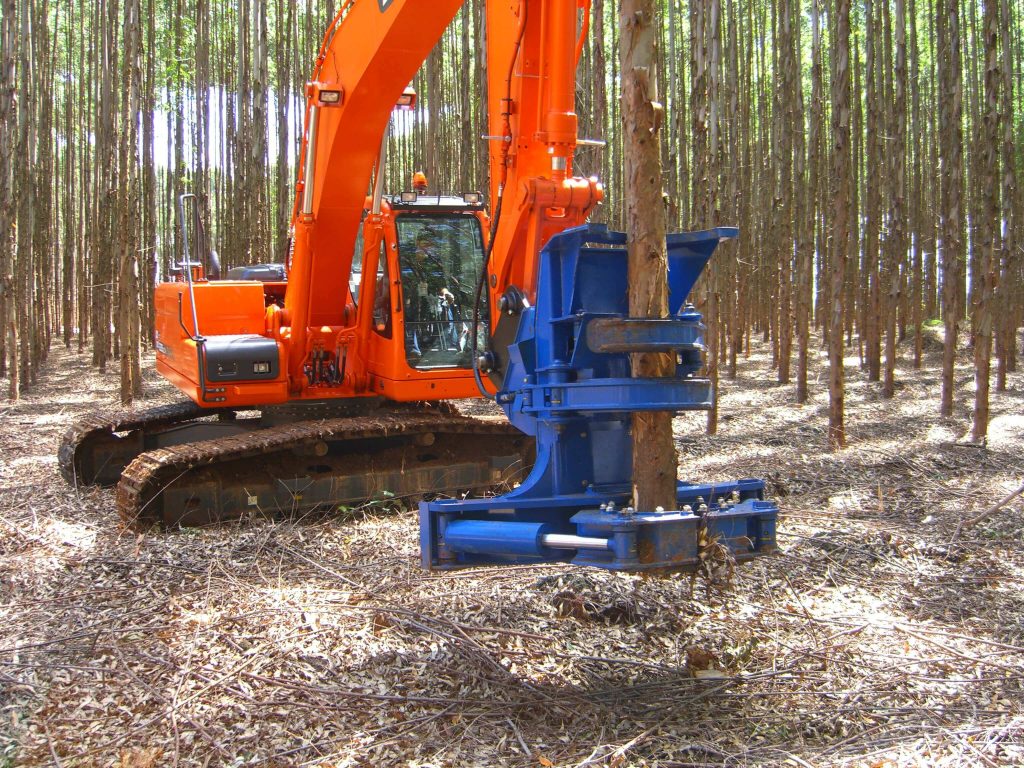

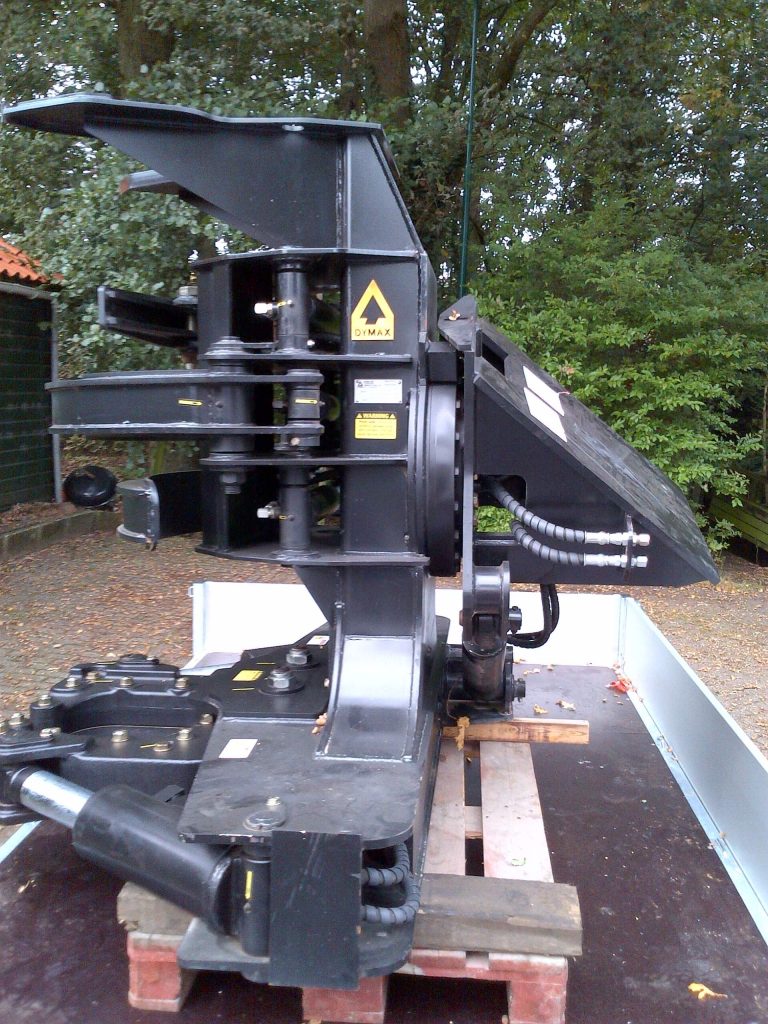

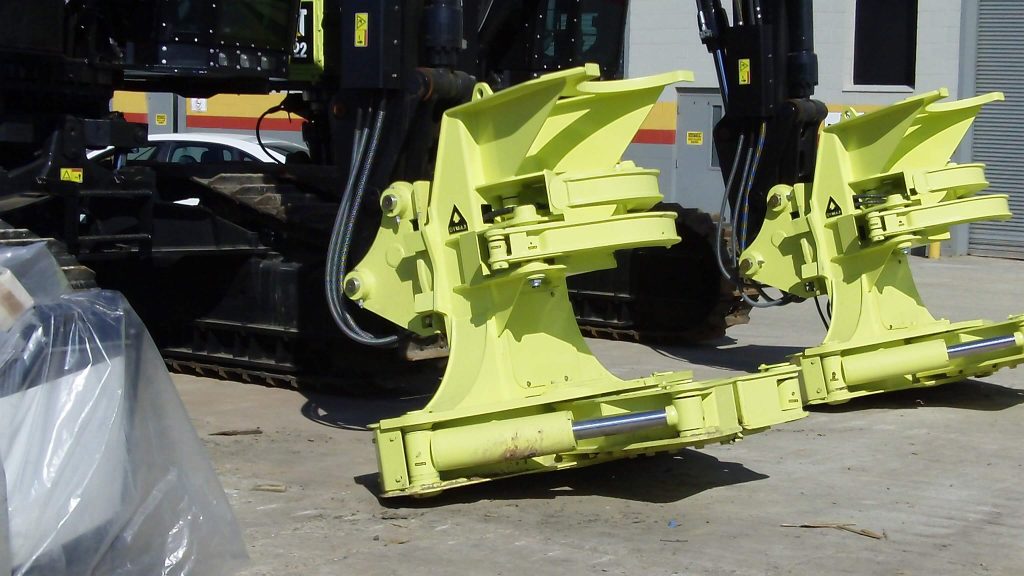

Dymax Tree Shear Hydraulic Excavator

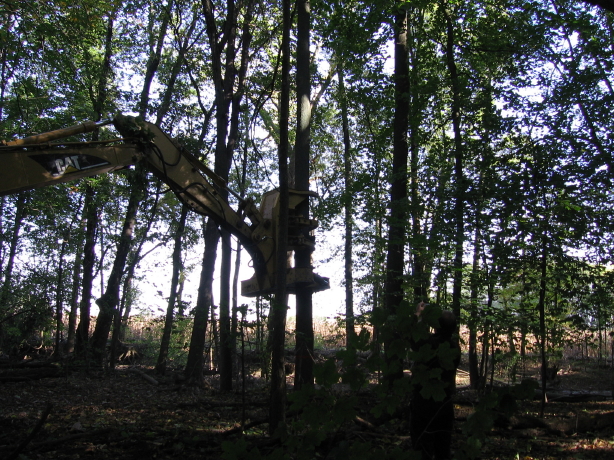

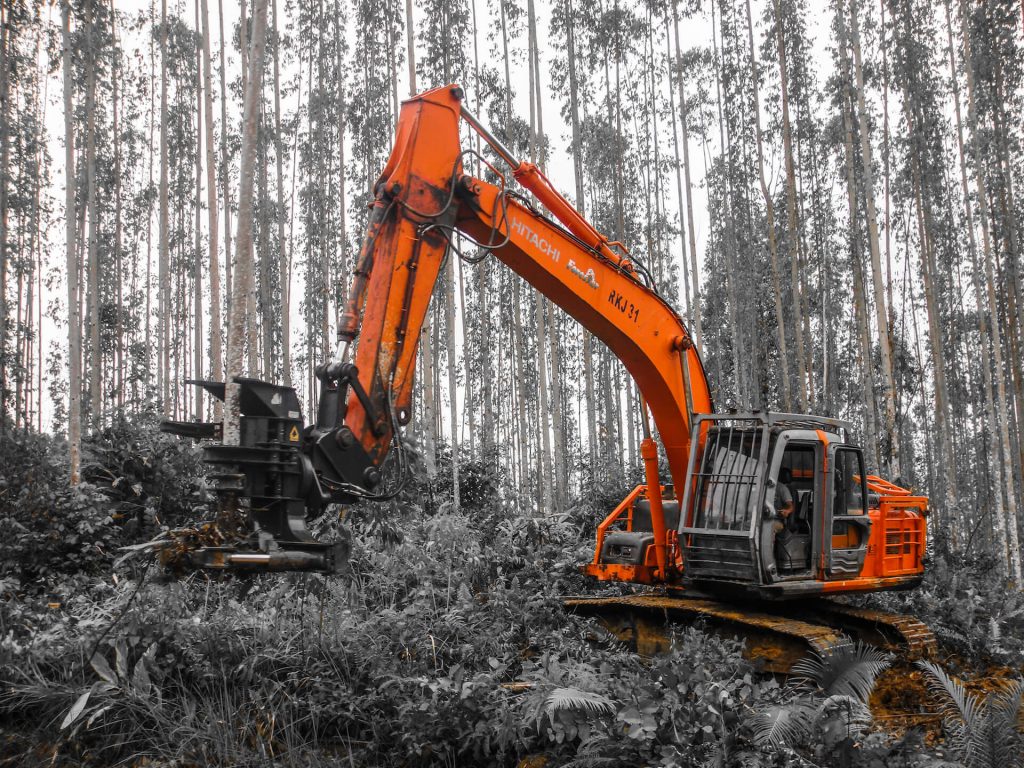

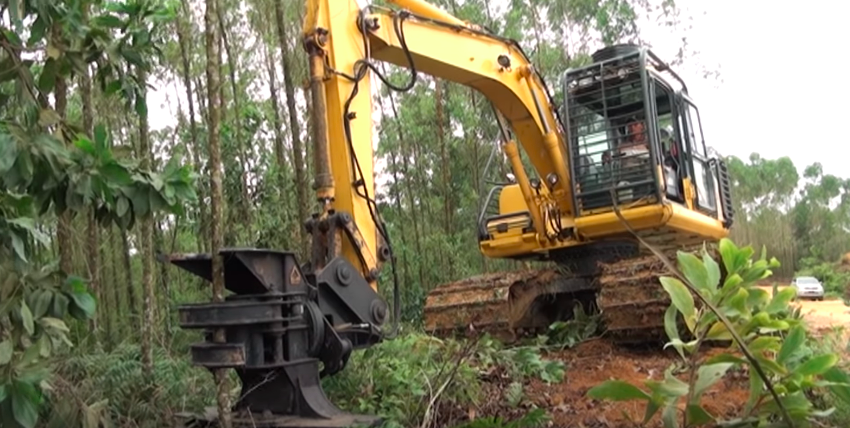

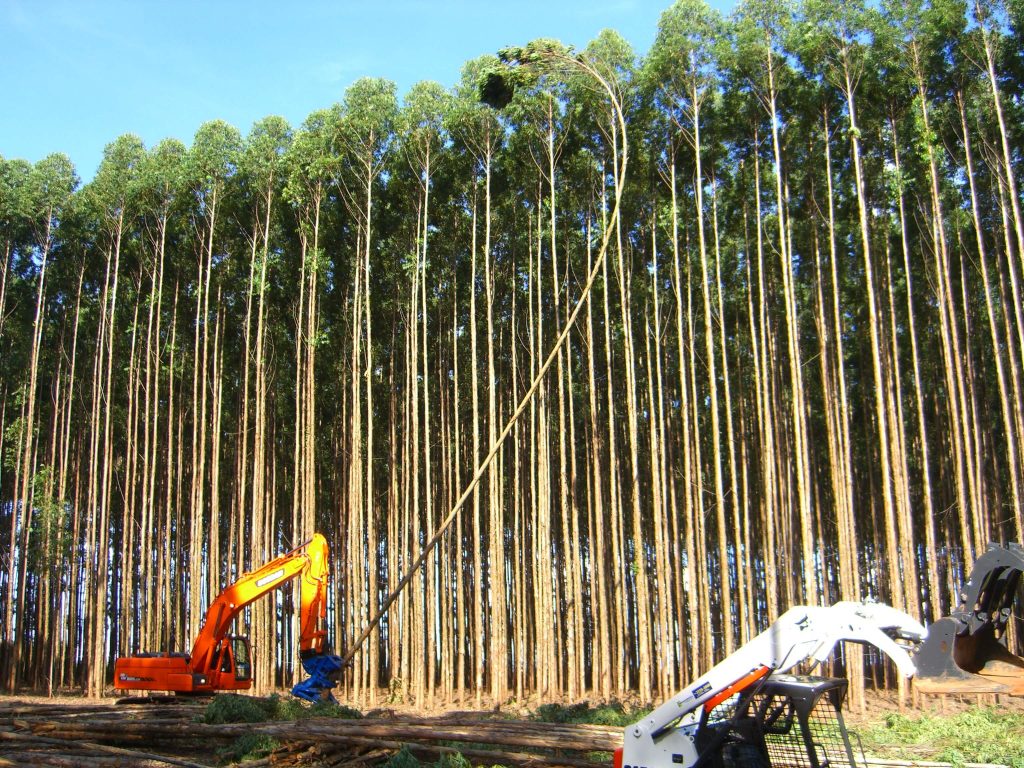

The Dymax Tree Shear is ideal for maintaining ditches around highways and county roads, as well as other utility clearing operations.

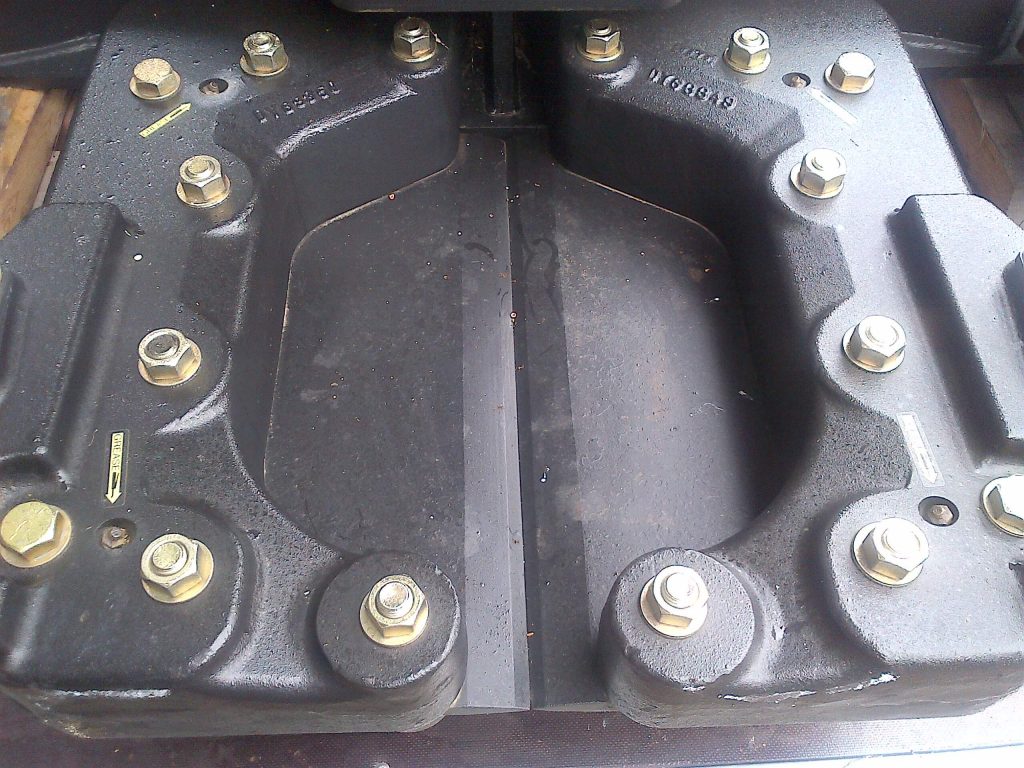

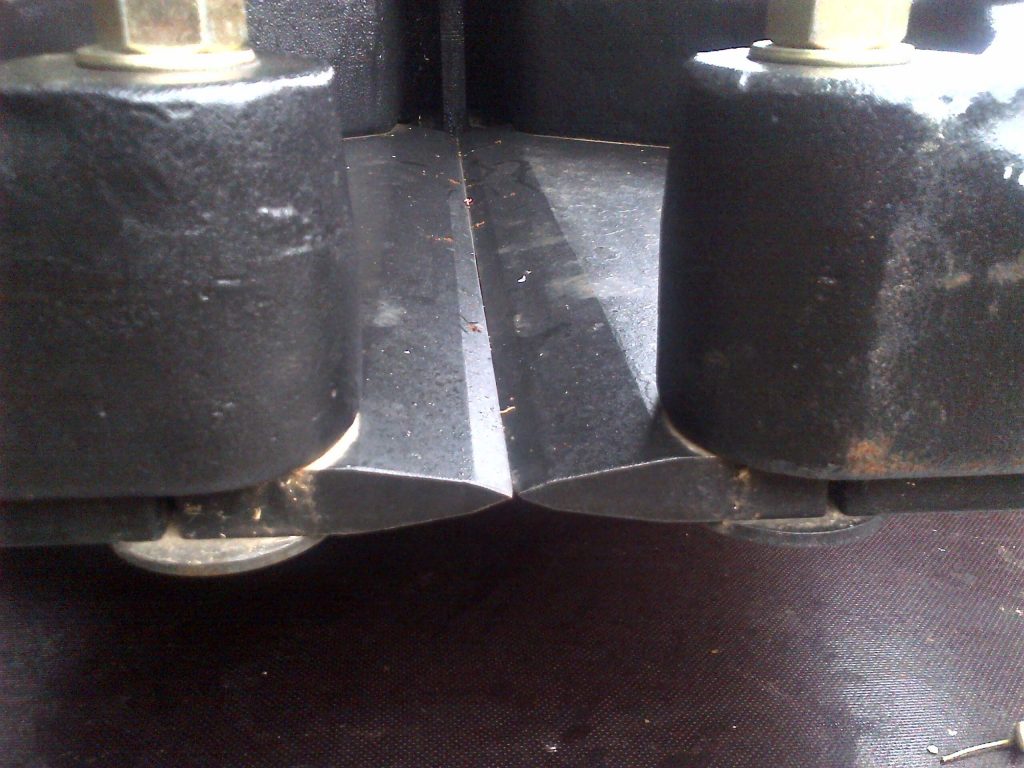

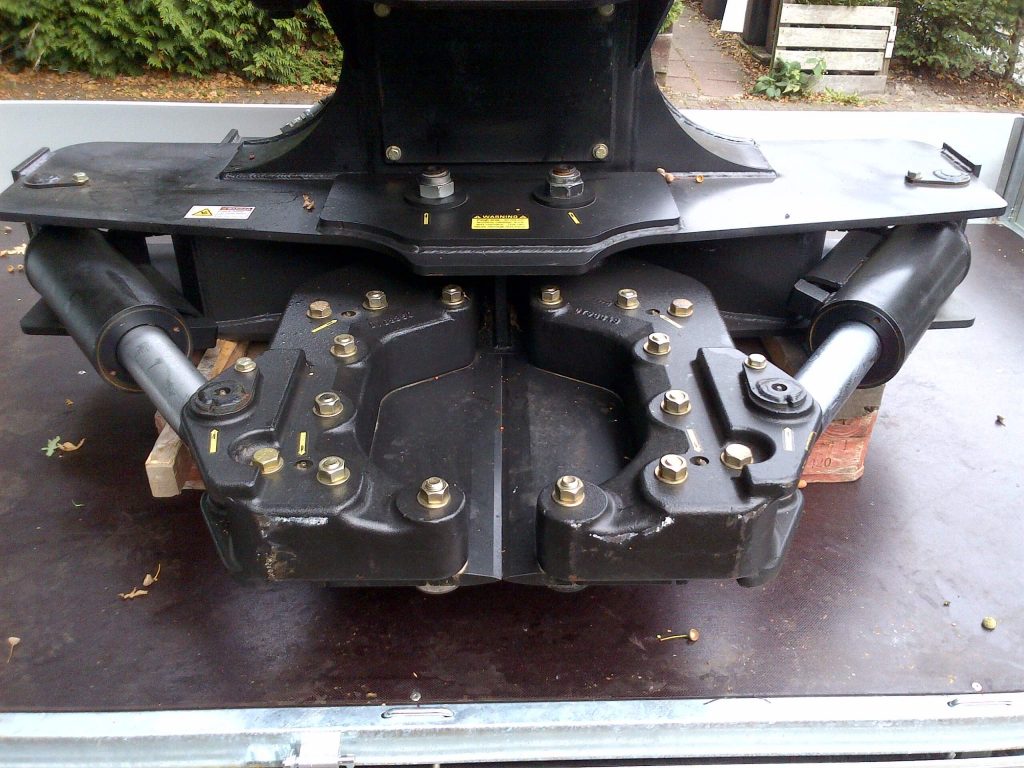

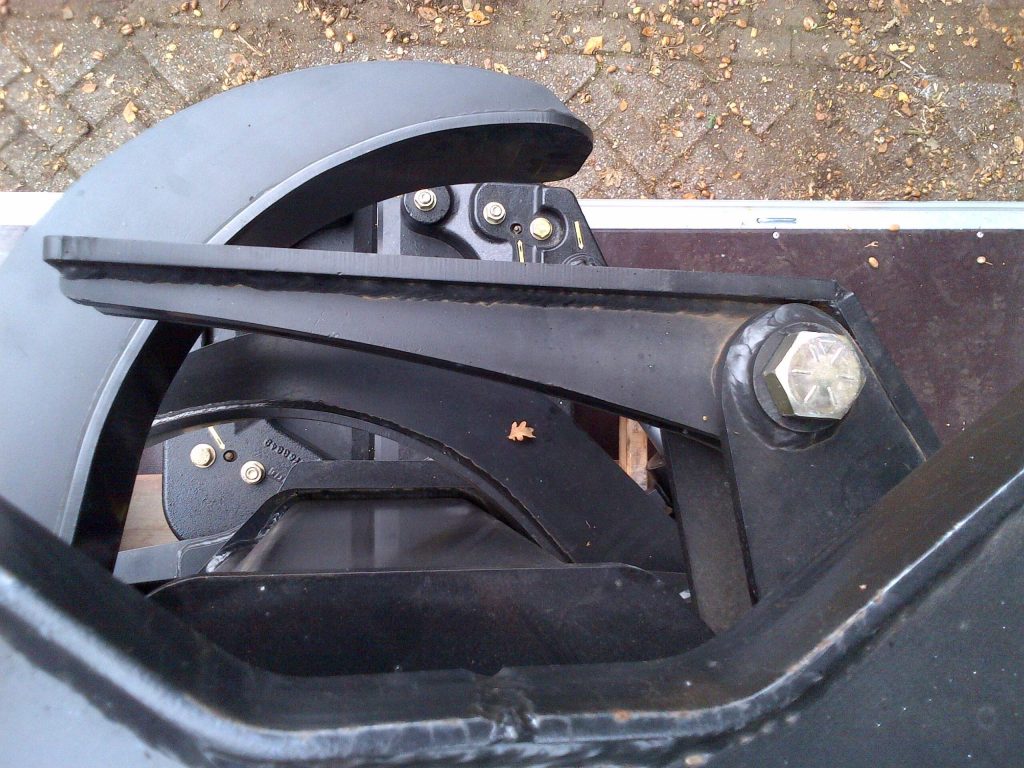

Featuring solid cast shear arms that are 50% stronger than competing products, this tree shear has razor sharp, replaceable 25mm. thick AR400 knives.

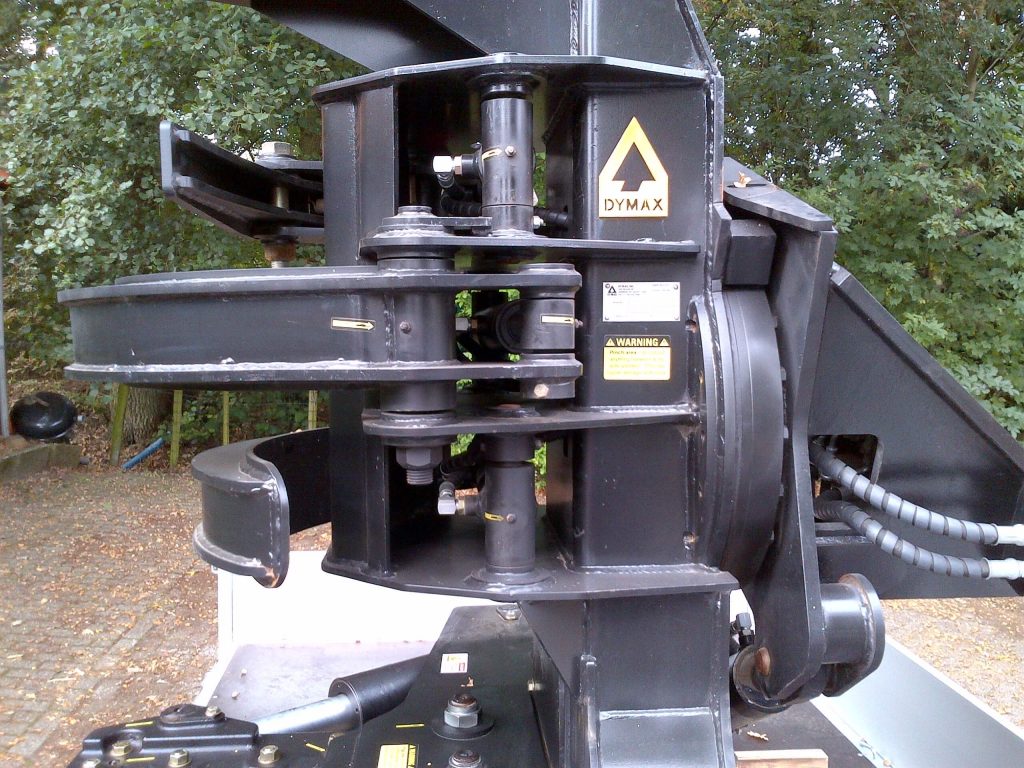

Included sequence valve allows double grapples to secure the tree before shearing, giving the operator full control.

Cutting capacity
35 and 41 cm (14" or 16" model)
Tilt
Fixed or 2x30 degrees

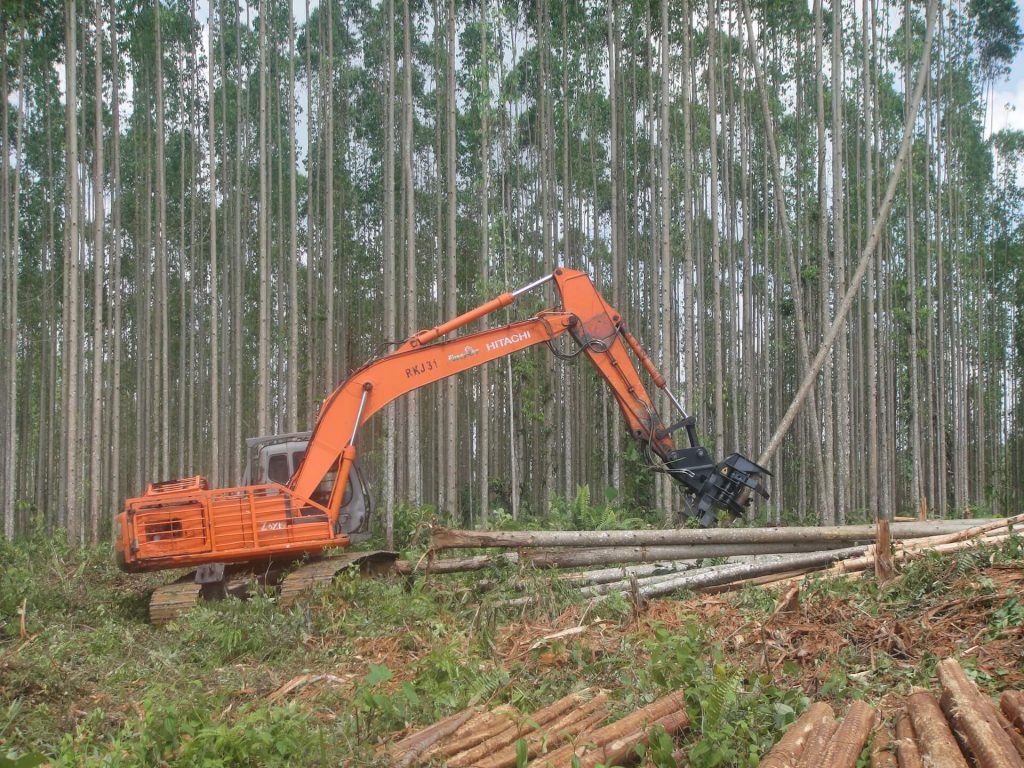

Bunching
Optional
Dimensions + weight (35 cm model)
1,47 X 1,70 X 1,57 m - 1620 kilos with tilt
Dimensions + weight (41 cm model)
1,65 X 1,85 X 1,52 m - 1730 kilos with tilt
Excavator class
13t - 20t (35 cm model) // 16t -20t (41 cm model)
Flow and pressure
75-132 lpm // 248 bar
